230/950CAK/W33+OH30/950H軸承
更新日期：2026/3/18簡介: SKF軸承230/950CAK/W33+OH30/950H 類型為球面滾子軸承, 帶緊定套的， 內徑為:900mm外徑為:1360mm厚度為:300mm 軸承內圈,外圈更多詳細資料您可致電我司，獲取SKF 230/950CAK/W33+OH30/950H軸承 代號,230/950CAK/W33+OH30/950H基本尺寸,安裝尺寸,基本額定載荷,精度等級,裝配, 軸承的圖紙、樣品、價格或者替換產品等！咨詢電話:0512-62658883

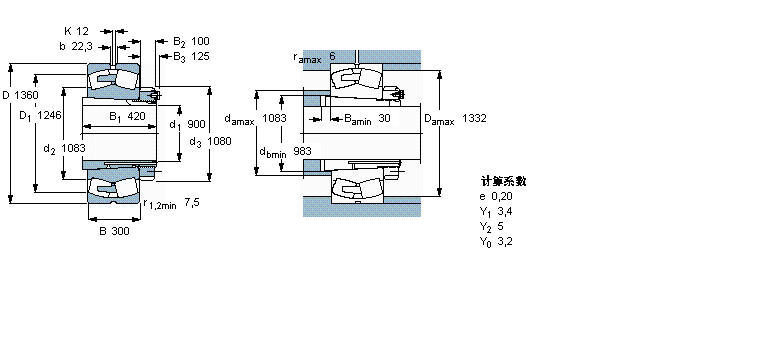

球面滾子軸承, 帶緊定套的230/950CAK/W33+OH30/950H軸承 樣本圖紙
| 球面滾子軸承, 帶緊定套的 | ||||||||||
| 公差 , 參見文字 | ||||||||||
| 徑向內部游隙 , 參見文字 | ||||||||||
| 推薦配合 | ||||||||||
| 軸和軸承座公差 | ||||||||||
|
||||||||||
| 主要數(shù)據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 額定速度 | 體積 | 型號 | |||||
| 動態(tài) | 靜態(tài) | 參照速度 | 限制速度 | 軸承 + 緊定套 | ||||||
| d1 | D | B | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 900 | 1360 | 300 | 12000 | 28500 | 1600 | 200 | 380 | 1870 | 230/950 CAK/W33 + OH 30/950 H | |
